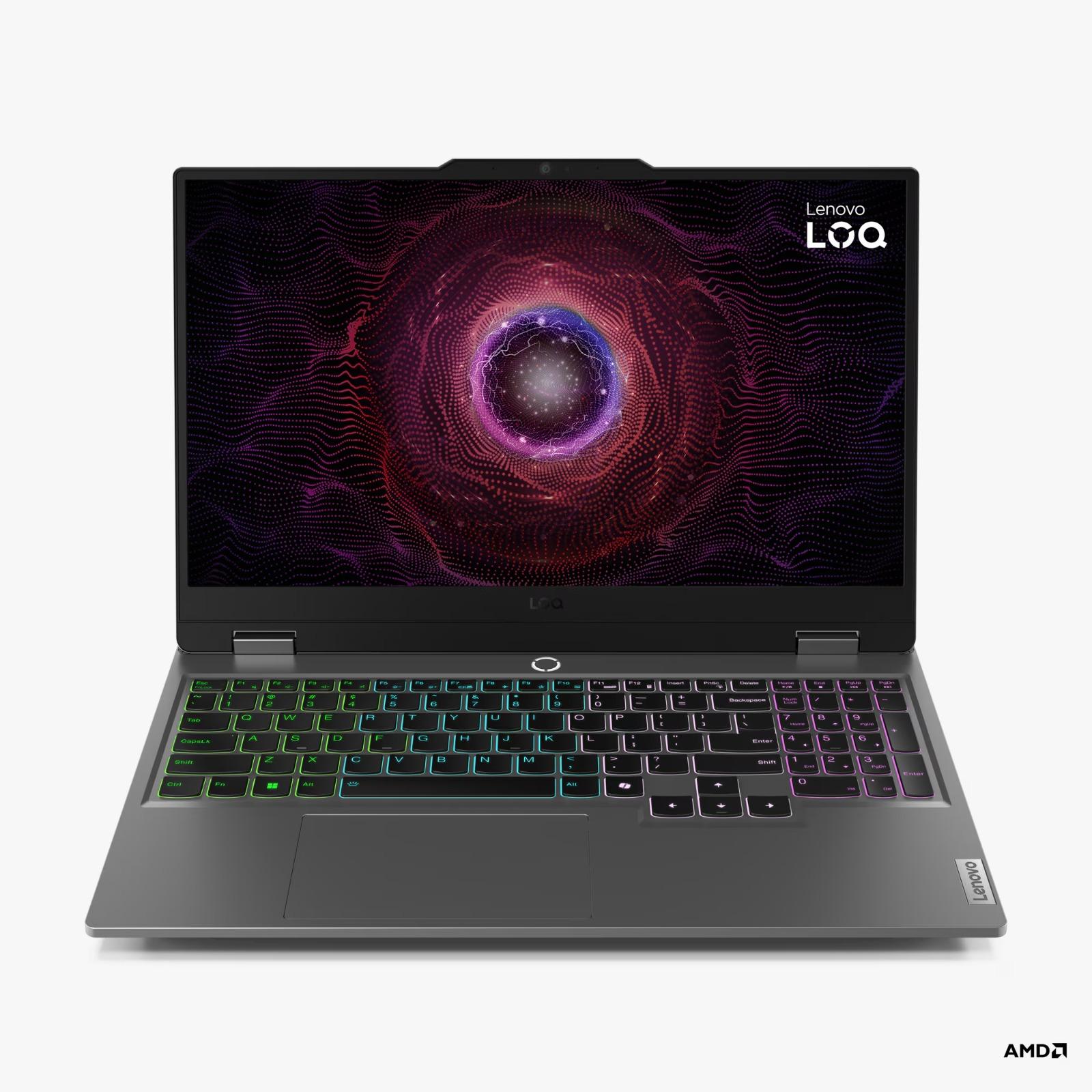

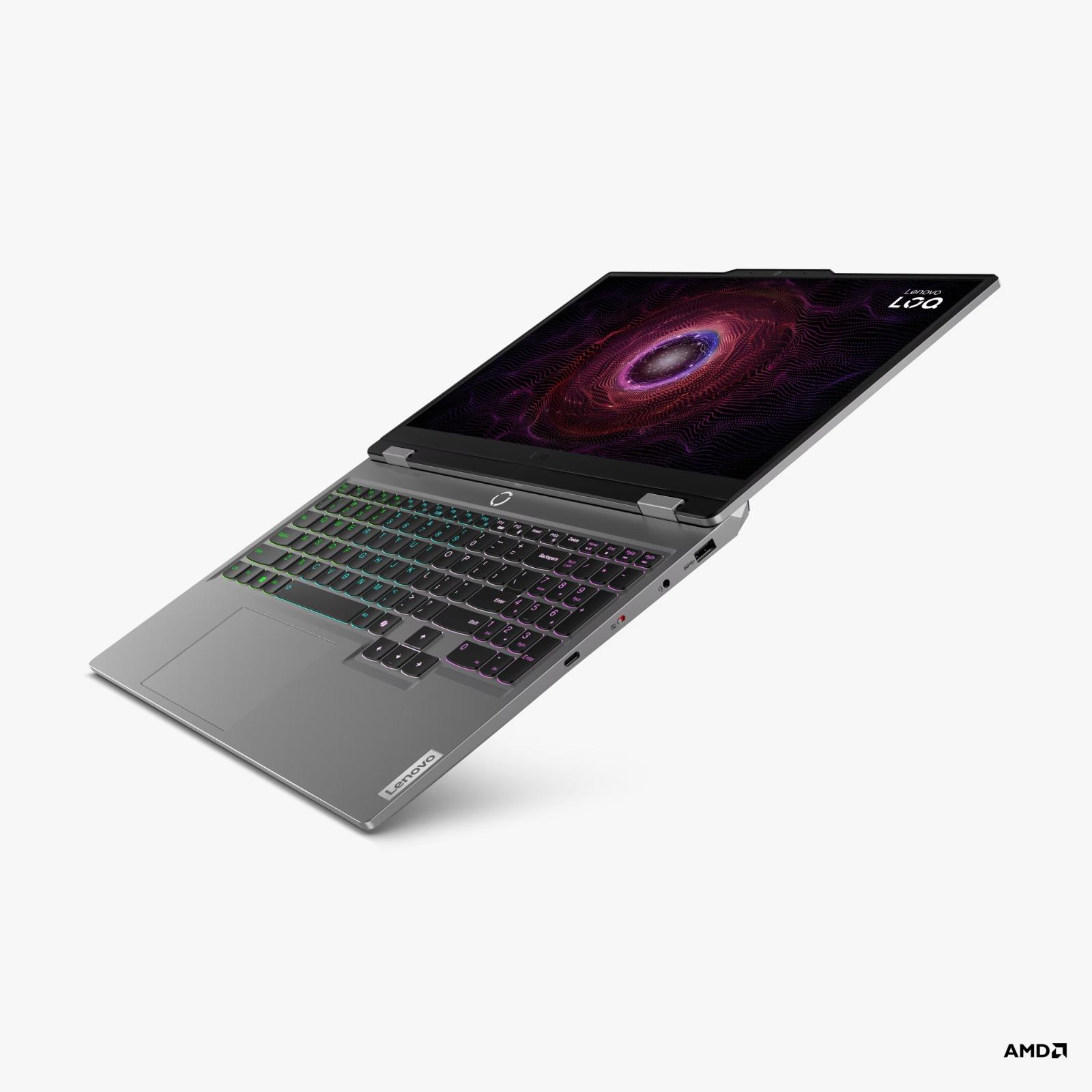

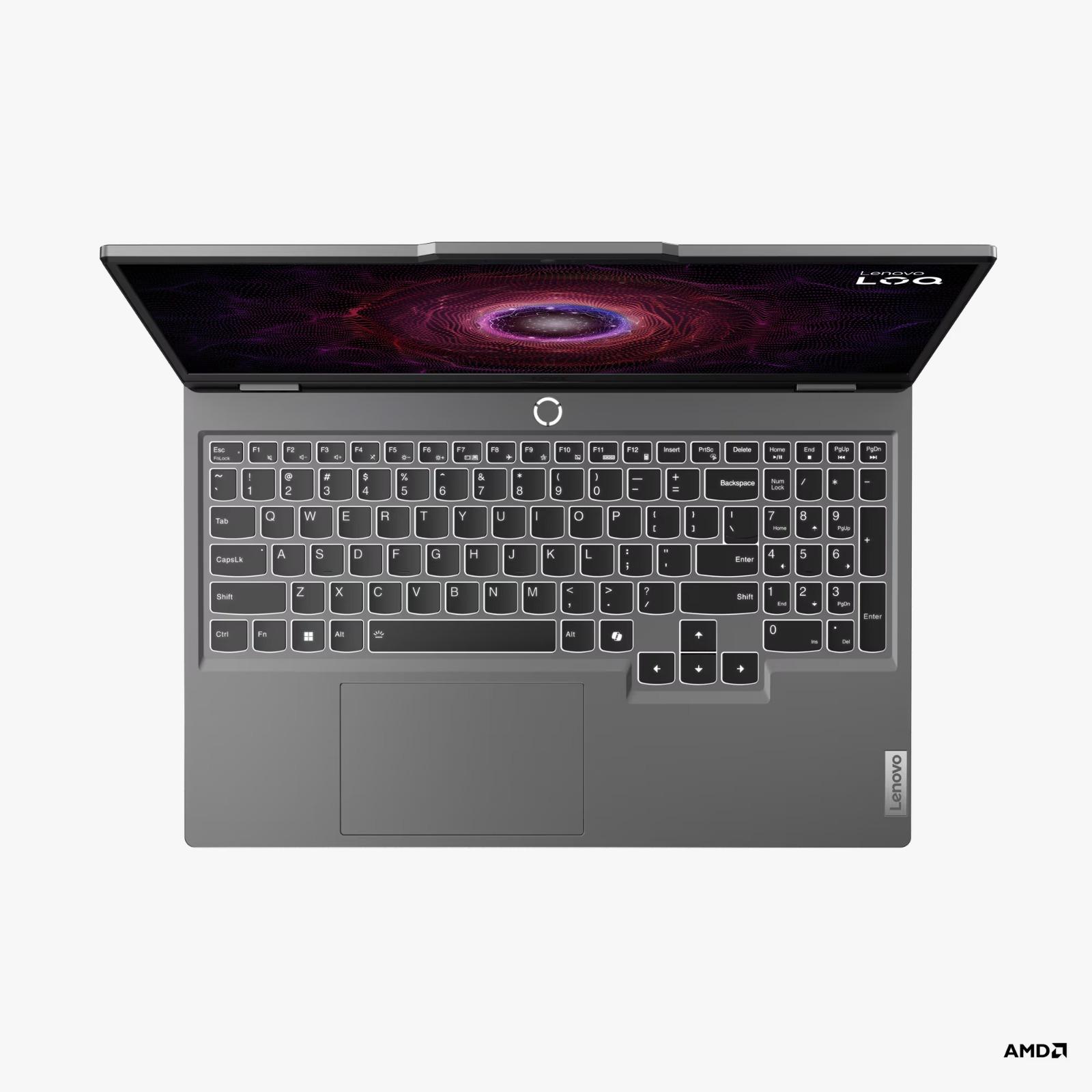

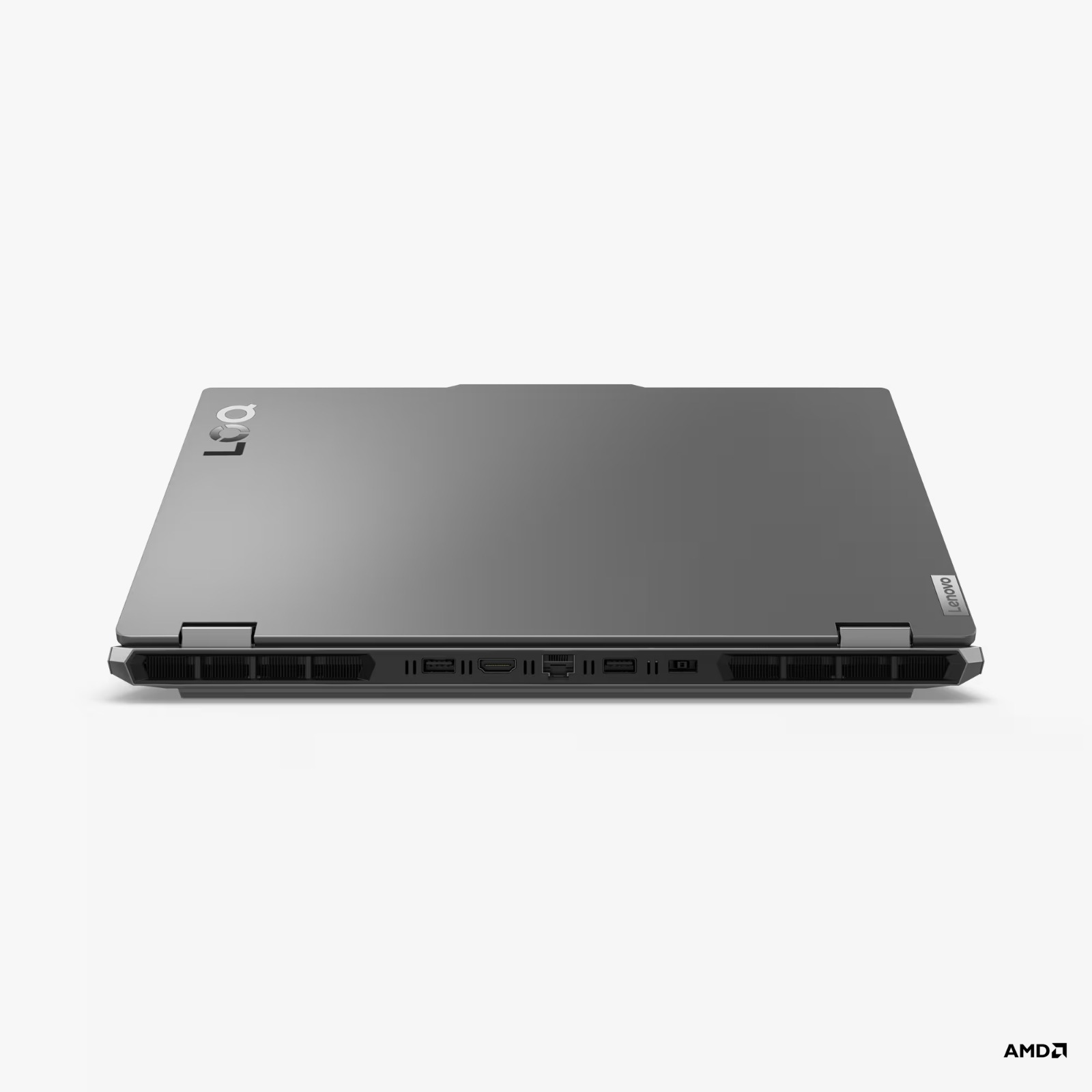

LOQ 15ARP9
Model : 83JC00J5ID

PERFORMANCE
Processor AMD Ryzen 7 7435HS (8C / 16T, 3.1 / 4.5GHz, 4MB L2 / 16MB L3)
AI PC Category AI-Powered Gaming PC
Graphics NVIDIA GeForce RTX 4050 6GB GDDR6, Boost Clock 2370MHz, TGP 105W
Chipset AMD SoC Platform
Memory 1x 12GB SO-DIMM DDR5-4800
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 32GB DDR5-4800
Storage 512GB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Support "Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB each"
Storage Slot Two M.2 2280 PCIe 4.0 x4 slots
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek ALC3287 codec
Speakers Stereo speakers, 2W x2, optimized with Nahimic Audio
Camera HD 720p with E-shutter
Microphone 2x, Array
Battery 60Wh
Power Adapter 170W Slim Tip (3-pin)
Special Features AI Chip: LA1
DESIGN
Display 15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC
Touchscreen None
Color Calibration None
Keyboard White Backlit, English
Touchpad Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color Luna Grey
Surface Treatment Painting
Case Material PC-ABS (Top), PC-ABS (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)
Weight Starting at 2.38 kg (5.25 lbs)
SOFTWARE
Operating System Windows 11 Home Single Language, English
Bundled Software Microsoft 365 Basic + Office Home 2024
CONNECTIVITY
WLAN + Bluetooth Wi-Fi 6, 802.11ax 2x2 + BT5.2
WWAN Non-WWAN
Ethernet 100/1000M (RJ-45)
Standard Ports "3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with Lenovo PD 140W and DisplayPort 1.4
1x HDMI 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector"
SECURITY & PRIVACY
Security Chip Firmware TPM 2.0 Enabled
Fingerprint Reader None
Other Security E-shutter
MANAGEABILITY
SERVICE
Warranty 2Y ADP, 2Y Premium Care
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications "ErP Lot 3
RoHS compliant"
Other Certifications TÜV Rheinland Low Blue Light (Software Solution)
