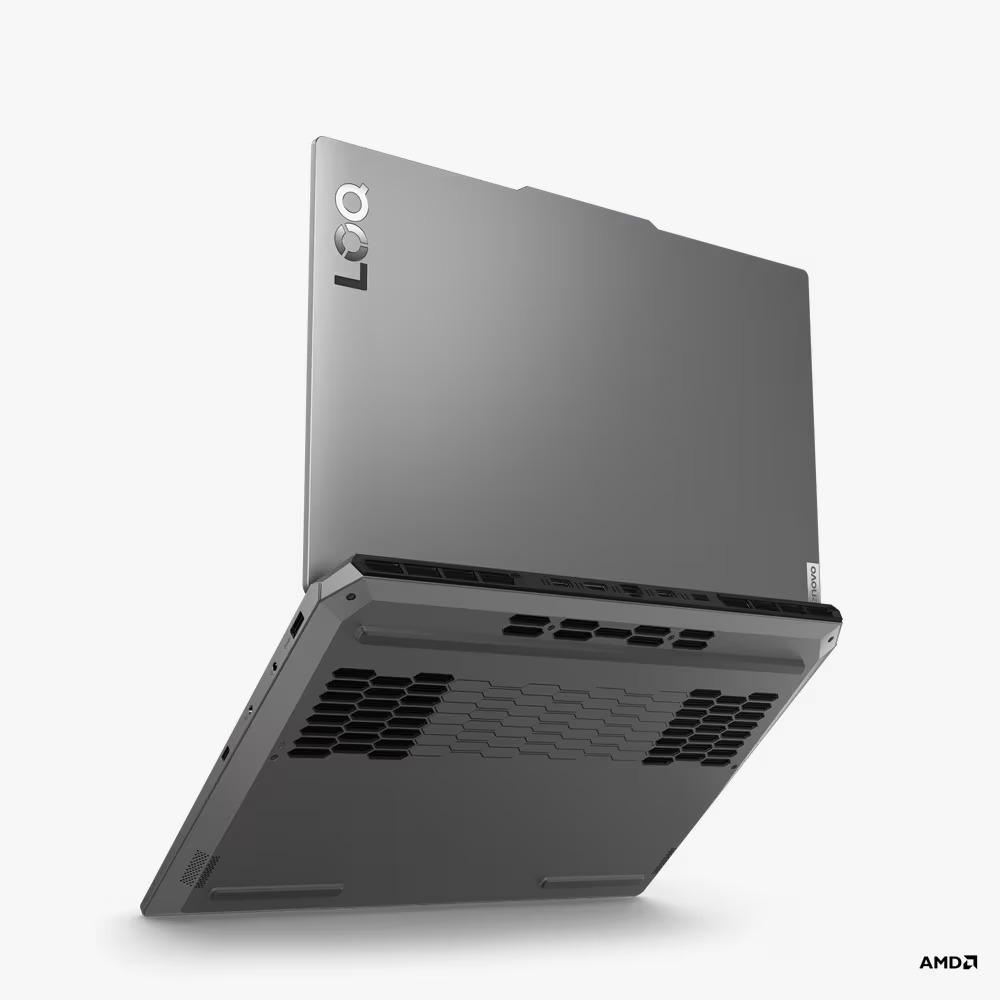

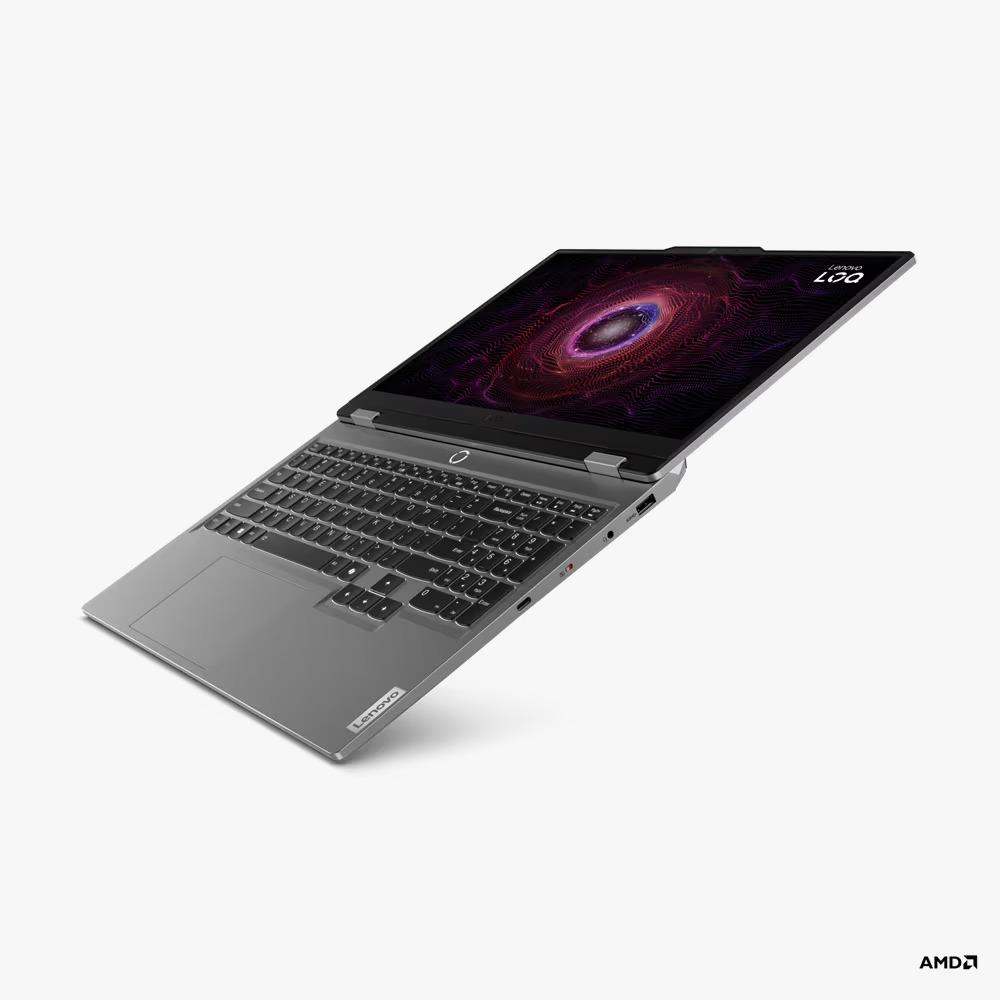

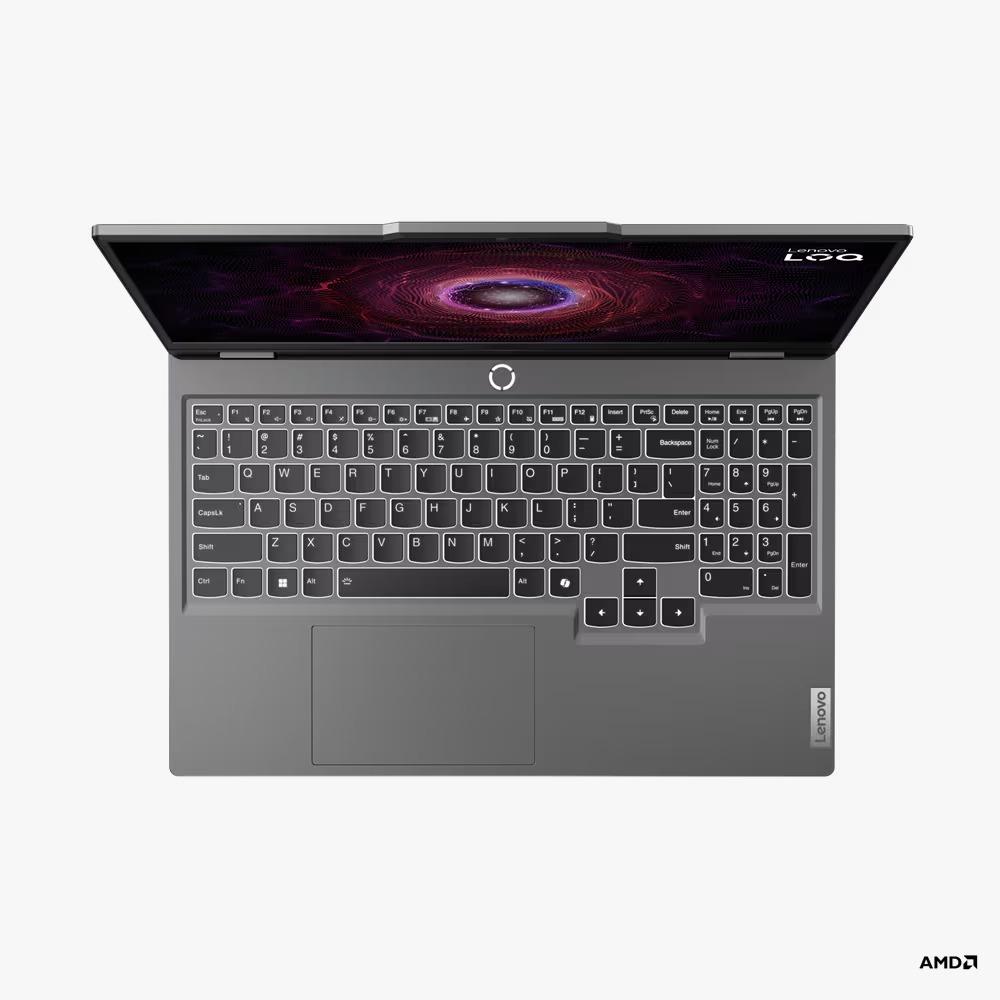

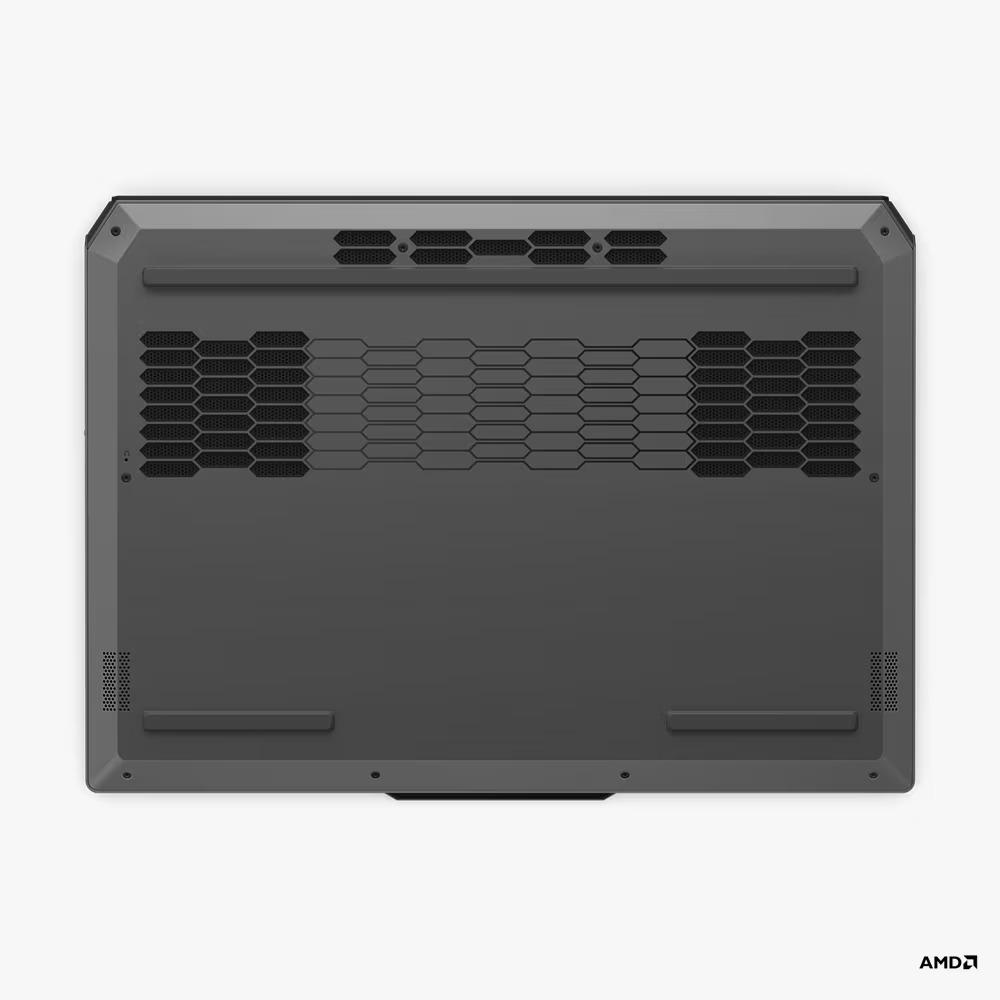

LOQ 15ARP9
Part Number : 83JC001YID

PERFORMANCE
Processor    AMD Ryzen 7 7435HS (8C / 16T, 3.1 / 4.5GHz, 4MB L2 / 16MB L3)
Graphics    NVIDIA GeForce RTX 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 105W
Chipset    AMD SoC Platform
Memory    1x 12GB SO-DIMM DDR5-4800
Memory Slots    Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory    Up to 32GB DDR5-4800
Storage    512GB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2242 SSD up to 1TB
Storage Slot    Two M.2 2280 PCIe 4.0 x4 slots
Card Reader    None
Optical    None
Audio Chip    High Definition (HD) Audio, Realtek ALC3287 codec
Speakers    Stereo speakers, 2W x2, optimized with Nahimic Audio
Camera    HD 720p with E-shutter
Microphone    2x, Array
Battery    Integrated 60Wh
Power Adapter    170W Slim Tip (3-pin)
Special Features    AI Chip: LA1
DESIGN
Display    15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC
Touchscreen    None
Color Calibration    None
Keyboard     White Backlit, English
Touchpad    Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color    Luna Grey
Surface Treatment    Painting
Case Material    PC-ABS (Top), PC-ABS (Bottom)
Dimensions (WxDxH)    359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)
Weight    Starting at 2.38 kg (5.25 lbs)
SOFTWARE
Operating System    Windows 11 Home Single Language, English
Bundled Software    Office Home & Student 2021
CONNECTIVITY
Ethernet    100/1000M (RJ-45)
WLAN + Bluetooth    Wi-Fi 6, 11ax 2x2 + BT5.2
Standard Ports
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with Lenovo PD 140W and DisplayPort 1.4
1x HDMI 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x Power connector
Docking
Various docking solutions supported via USB-C.
For more compatible docking solutions, please visit Docking for LOQ 15ARP9
Security Chip    Firmware TPM 2.0 Enabled
Fingerprint Reader    None
Other Security    E-shutter
SERVICE
Base Warranty    1-year, Courier or Carry-in
Included Upgrade    2Y ADP - Idea NB Entry(ESS), 2Y Premium Care -IPENTRY (ESS)
ACCESSORIES
Bundled Accessories    None
CERTIFICATIONS
Green Certifications
ErP Lot 3
RoHS compliant
Other Certifications
TÜV Rheinland Low Blue Light (Software Solution)
