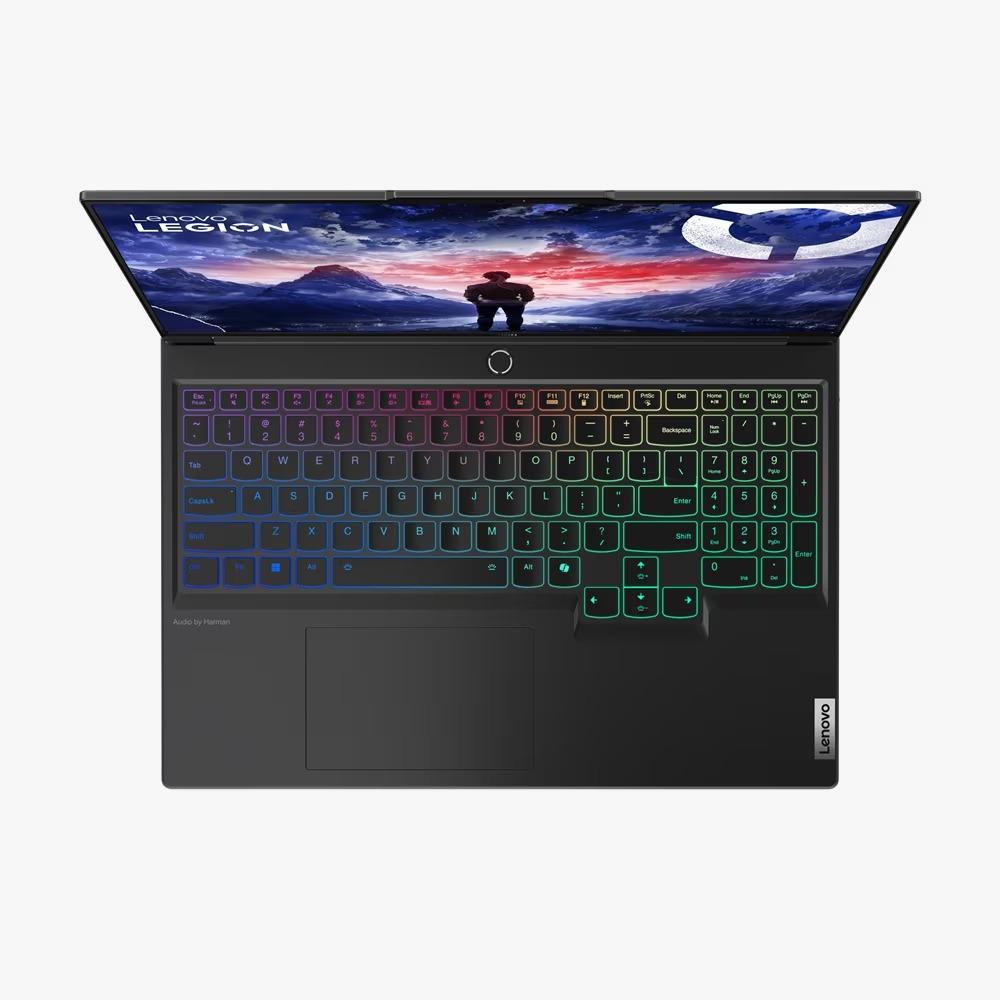

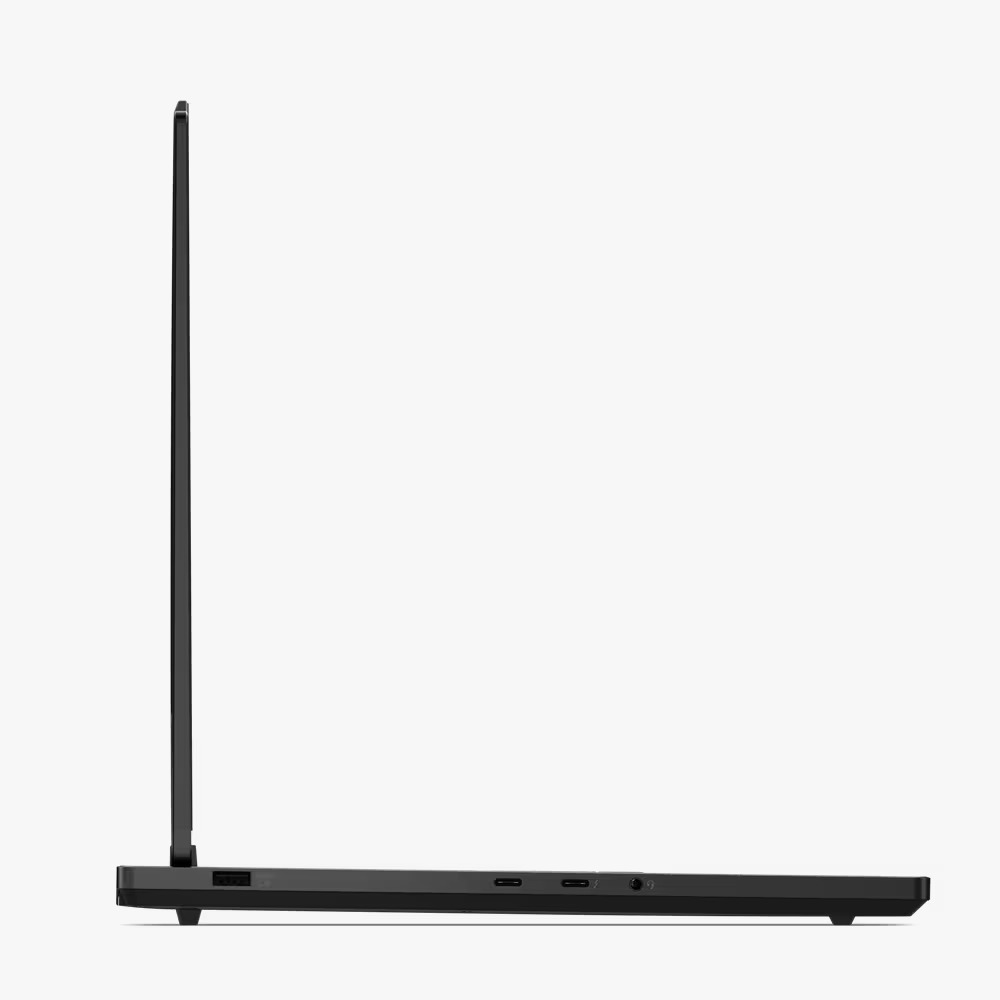

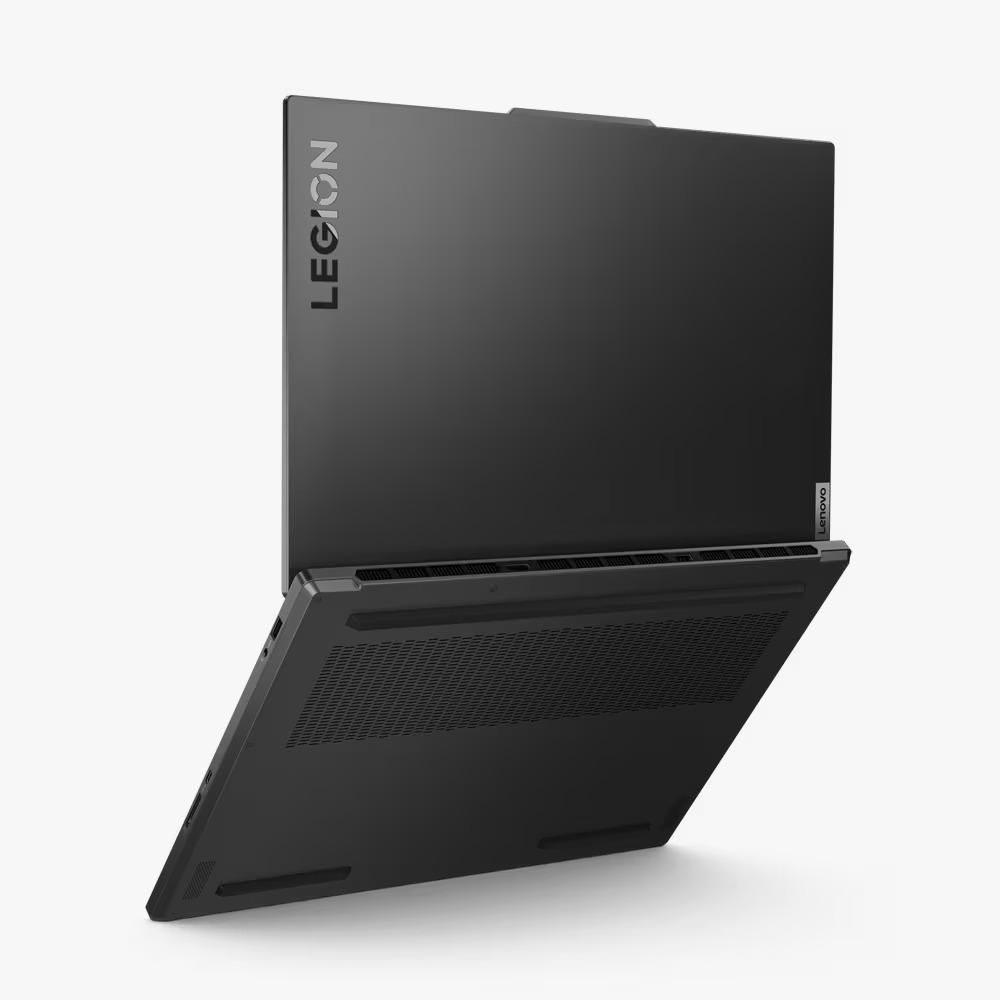

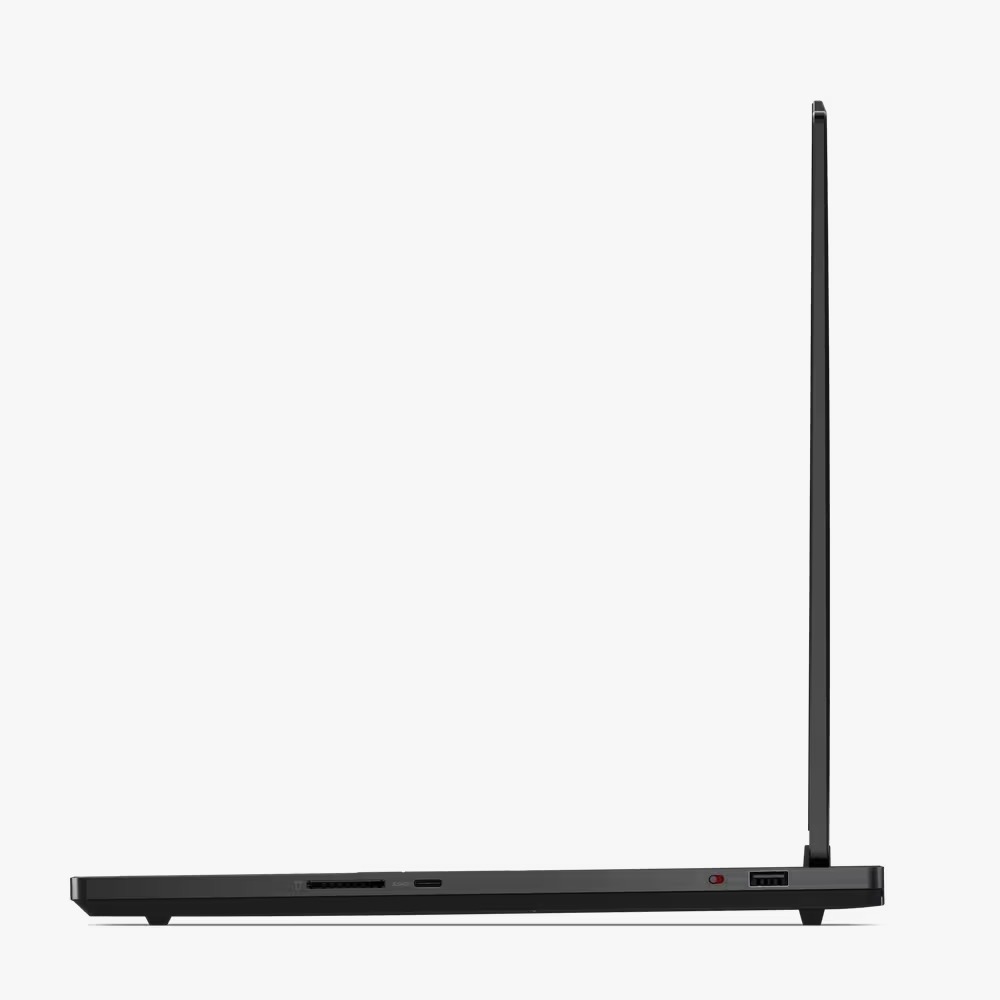

Legion 7 16IRX9
Model : 83FD0007ID

PERFORMANCE
Processor    Intel Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB
Graphics    NVIDIA GeForce RTX 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 130W
Chipset    Intel HM770 Chipset
Memory    2x 8GB SO-DIMM DDR5-5600
Memory Slots    Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory    Up to 32GB DDR5-5600 offering
Storage    1TB SSD M.2 2280 PCIe 4.0x4 NVMe
Storage Support    "Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 1TB"
Storage Slot    Two M.2 2280 PCIe 4.0 x4 slots
Card Reader    SD Card Reader
Optical    None
Audio Chip    High Definition (HD) Audio, Realtek ALC3287 codec
Speakers    Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Camera    FHD 1080p with E-shutter
Microphone    2x, Array
Battery    Integrated 99.9Wh
Power Adapter    230W Slim Tip (3-pin)
Special Features    AI Chip: LA3
DESIGN
Display    16" 3.2K (3200x2000) IPS 430nits Anti-glare, 100% DCI-P3, 165Hz, Dolby Vision, G-SYNC, Low Blue Light
Touchscreen    None
Color Calibration    Factory Color Calibration
Keyboard    Per-key RGB Backlit, English
Touchpad    Buttonless glass surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)
Case Color    Eclipse Black
Surface Treatment    Anodizing
Case Material    Aluminium (Top), Aluminium (Bottom)
Dimensions (WxDxH)    357.7 x 262.5 x 17.6-19.8 mm (14.08 x 10.33 x 0.69- 0.78 inches)
Weight    Starting at  2.24 kg (4.94 lbs)
SOFTWARE
Operating System    Windows 11 Home Single Language, English
Bundled Software    Office Home & Student 2021
CONNECTIVITY
Ethernet    No Onboard Ethernet
WLAN + Bluetooth[1]    Wi-Fi 6E, 11ax 2x2 + BT5.3
Standard Ports    "1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C (USB 5Gbps / USB 3.2 Gen 1)
1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with Lenovo PD 140W and DisplayPort 1.4
1x USB-C (Thunderbolt 4 / USB4 40Gbps), with PD 140W and DisplayPort 1.4
1x HDMI 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Card reader
1x Power connector"
SECURITY & PRIVACY
Security Chip    Firmware TPM 2.0 Enabled
Fingerprint Reader    Touch Style, Integrated in Power Button
Other Security    E-shutter
MANAGEABILITY
SERVICE
Warranty    3Y ADP, 3Y Legion Ultimate Support
ACCESSORIES
Bundled Accessories    None
CERTIFICATIONS
Green Certifications    "ErP Lot 3
RoHS compliant"
Other Certifications    TÜV Rheinland Low Blue Light (Hardware Solution)
